THE ONLY FULLY-COMPUTERIZED VERTICAL BEAM SAW
Take your production line to new heights with the only fully-computerized vertical beam saw available. This high-end saw can handle just about any material, using automated cycles that cut man-hours, too. Start it with the push of a button, and maintain tight control over production standards with a real time adjustable speed dial and a machine controller that supports both incremental and absolute programming. Want even more customization? The onboard computer’s large storage capacity can download third-party optimization software, and you can adjust all machine parameters so your exact needs can be met with precision.
As a vertical saw, the SPN2 saves floor space while maintaining accuracy with a unique full-length pneumatic pressure beam to clamp stacked panels across the whole length of the kerf. Once the material is secured, the saw blade emerges to cut, then retracts behind the table for the return stroke as the pressure beam releases. Then the machine automatically indexes your material for the next cut. The fully-encased saw blade keeps operators safe in all three of its cut modes: top-to-bottom, scoring, and reciprocating.
With the SPN2 Vertical Beam Saw, you can enter the next generation of production automation with confidence.
THE SPN2 CUTS INTO
Introducing ProgrammableÂ

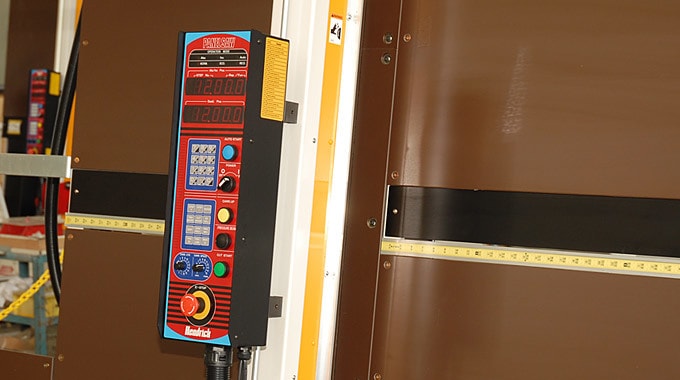

Speed up processes with the SINUC3000 computerized controller, which is programmable for absolute or incremental cutting. The hardware has storage capacity for third party optimization programs, and gives detailed machine diagnostics so you can customize your cuts for your exact needs.

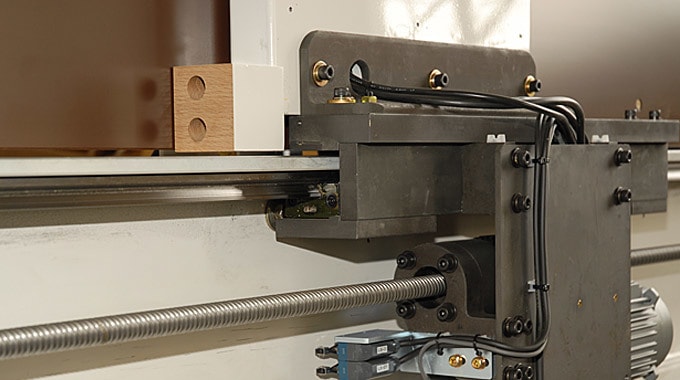

AC closed loop servo activated THK precision ball screw drive with THK LM guide ways ensure exact automated positioning of your material between cuts.
Maintain your material square and make loading and unloading easier with precision machined heavy-duty squaring fences.

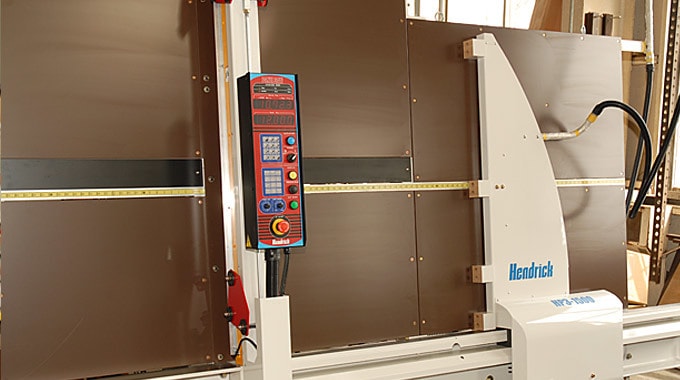

Save positioning time and maintain a straight line cut accuracy of +/- 0.005″ over the entire length of your materials with a heavy-duty precision machined H-Beam.
SPN2 FEATURES GALLERY
SPN2 COMPUTERIZED VERTICAL BEAM SAW DETAILS
SPECIFICATIONS
- 5′, 8′ & 10′
SPECIFICATIONS
- 10-60 fpm Variable by AC Inverter
SPECIFICATIONS

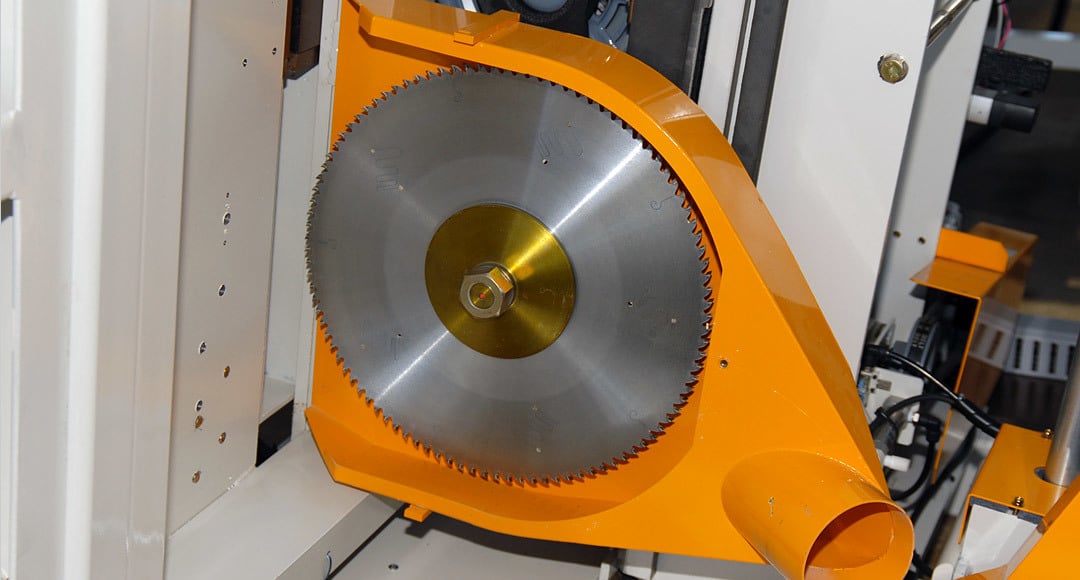

- 14″ Diameter x 1″ Bore
We chose the Hendrick SPN2 ultimately due to the safety it provides to our employees. Our employees safety is our number one concern at Zodiac Aerospace. Our usage of the shop table saw has decreased over 95%, this is an amazing feat. I would strongly encourage any high or low rate production facility to take the liability & risk of cut hazards out of your manufacturing environment. This is what the Hendrick SPN2 Panel Saw has accomplished for our facility.
